Circuitry

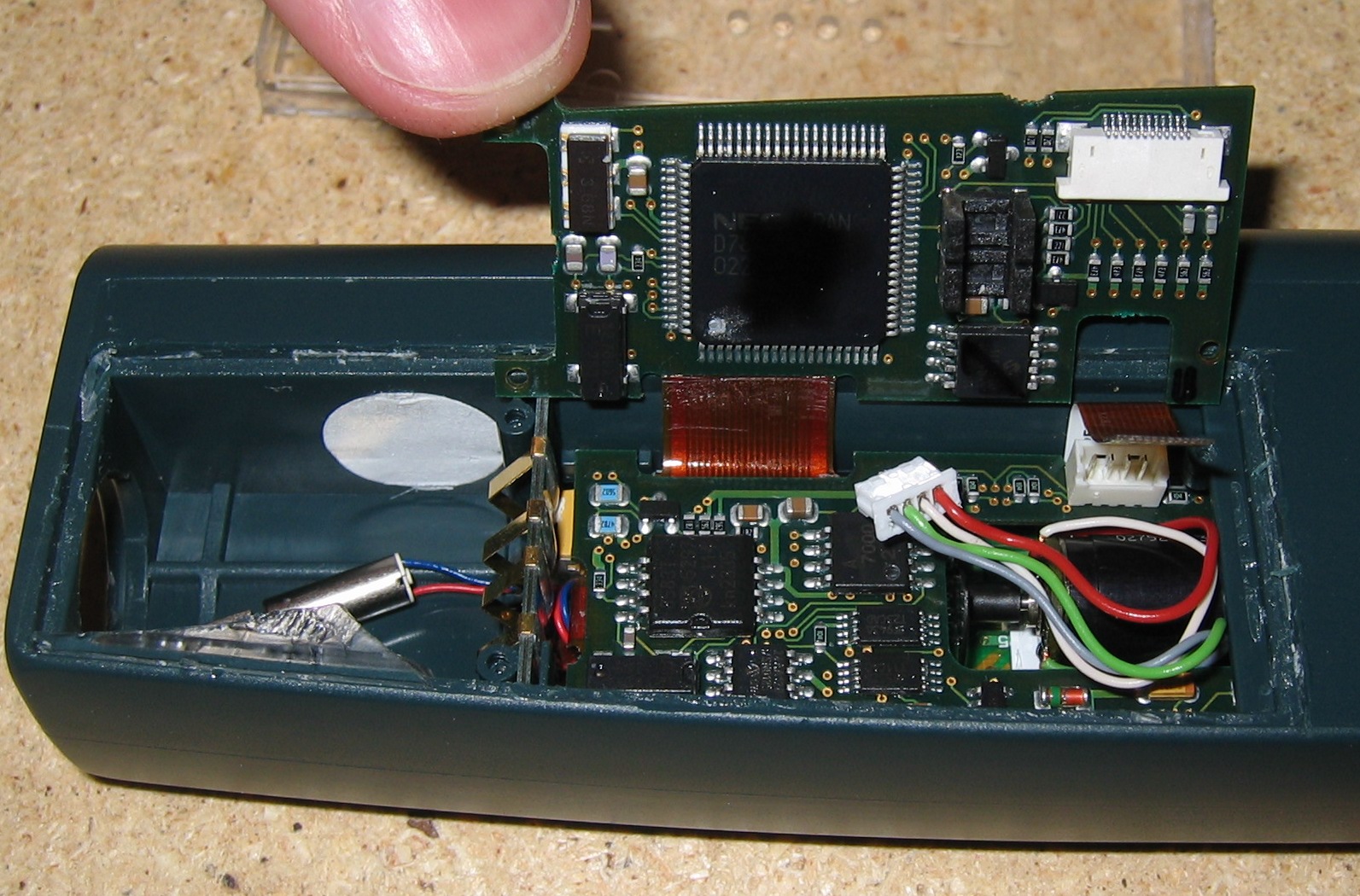

The circuitry is all built on a single rigid-flex assembly with a conformal coating.  Two photointerrupters mounted on the top board measure rotation of the pump motor.

Click for full size:
