Step generator

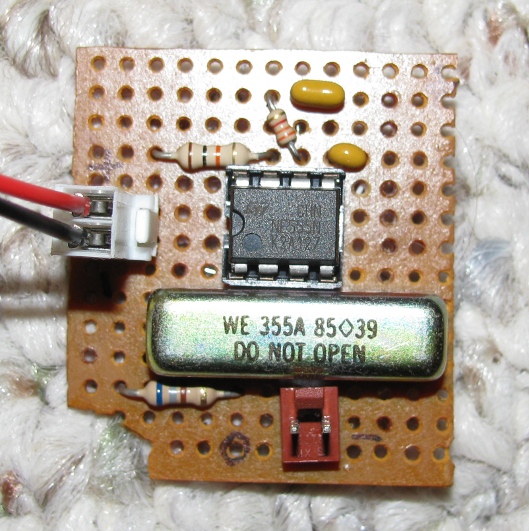

A fast step generator.  This is simply a 555 timer producing a square wave of about 100Hz, driving a mercury wetted reed relay.  This type of relay has no contact bounce and closes very quickly.  The output is pulled up with a resistor and discharged through the relay.

The relay was salvaged from an old PBX box.

Click for full size:
