USB JTAG Adapter
Submitted by ben on Thu, 08/26/2010 - 16:59
Contents:
Subjects:
This is basically a clone of the Amontec JTAGkey. It uses the FT2232C (superseded by the FT2232D) and requires no firmware. There is an EEPROM on the board to store the USB product and vendor IDs. It will work with 1.8V-5.0V targets.
Assembled Adapter

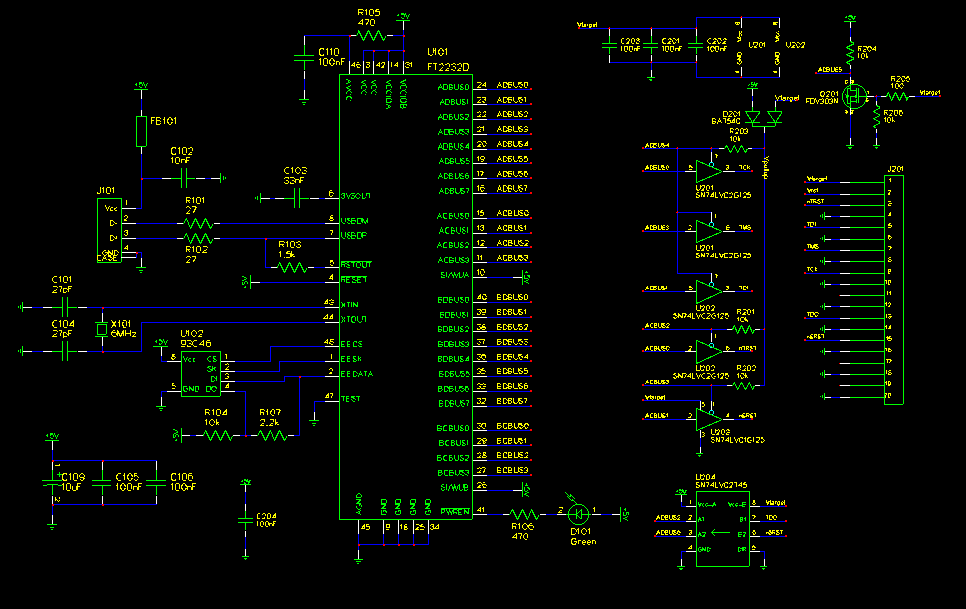

Schematic
